922VTC02
CROSS-HEAD SCREW M10x18
-
D
28
Language:
SUPPLIED COMPONENTS AND ACCESSORIES
Position
Code
Description
Needs
- 1
- 922TSL13
- TASSELLO 10X11,6X12,5
- 2
- 2
- 110401601
- VITE 8.8 TCEI M4X16 BRUN. UNI5931 ISO4762 DIN912 A0502001
- 2
- 3
- 922VTC02
- VITE TESTA A CROCE M10x18
- 1

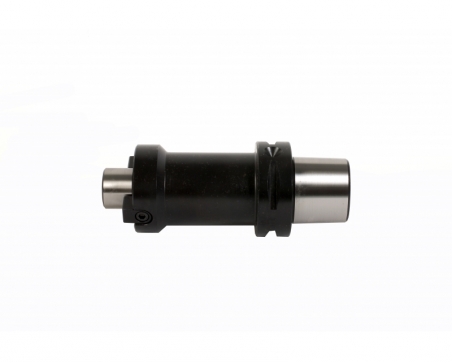

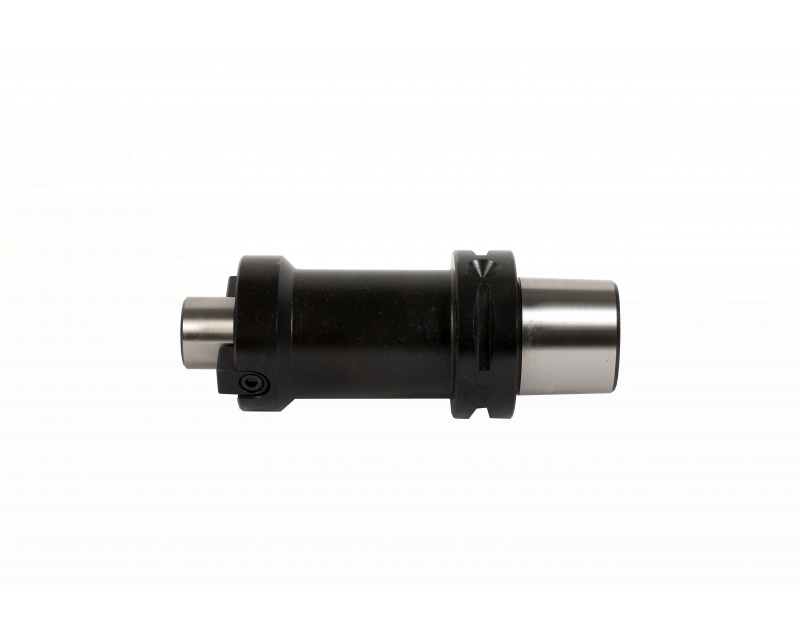

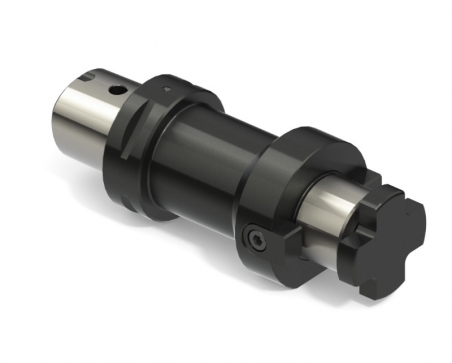

XP8PF022
C80 SHELL MILL HOLDER DIAM.22 L.30
Shell Mill Holders-Tenons Drive with Polygonal Shank - Accessories included

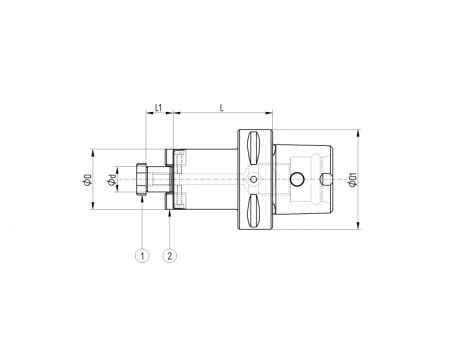

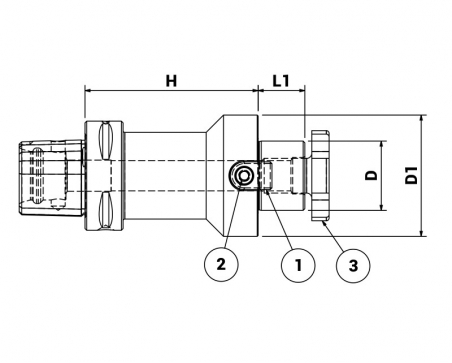

Data sheet
- Taper
- C80
- Typology
- PF - Shell Mill Holders
- DIN ISO
- ISO3937
- H
- 30
- D
- 22
- D1
- 55
- L
- 19
- L1
- 19
- Weight (Kg)
- 1
Shell Mill Holders-Tenons Drive with Polygonal Shank - Accessories included
