SUPPLIED COMPONENTS AND ACCESSORIES
Position
Code
Description
Needs
- 1
- 916TSL11
- TASSELLO 8X10,5X13
- 2
- 2
- 110301201
- VITE 8.8 TCEI M3X12 BRUN. UNI5931 ISO4762
- 2
- 3
- 916VTC02
- VITE TESTA A CROCE M8x16
- 1
350PF516

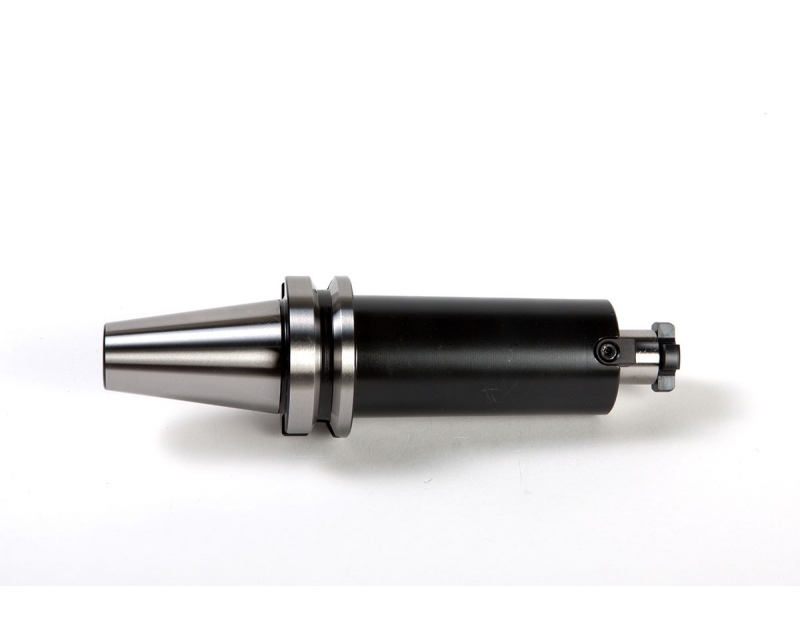

ISO50 MAS403BT SHELL MILL HOLDER H200 D.16 AD/B
Shell Mill Holders With Internal Coolant Supply - Accessories included

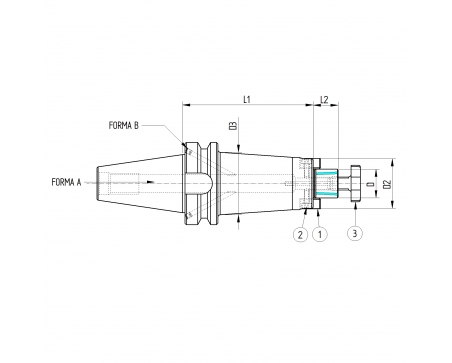

Data sheet
- Taper
- ISO50
- Typology
- PF - Shell Mill Holders
- DIN ISO
- ISO3937
- D
- 16
- D2
- 39
- L1
- 200
- L2
- 17
- Weight (Kg)
- 4.83
Shell Mill Holders With Internal Coolant Supply - Accessories included
