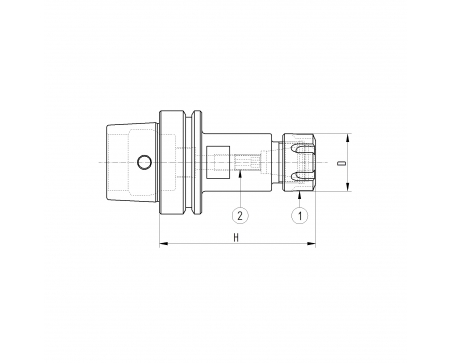

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 925GHREQ
  • GHIERA ER25 BILANCIATA STANDARD
  • 1
  • 2
  • 101815801
  • GRANO M18X1,5X8 CH.5 PASSANTE
  • 1
Direct purchase spare parts +

66EPP416

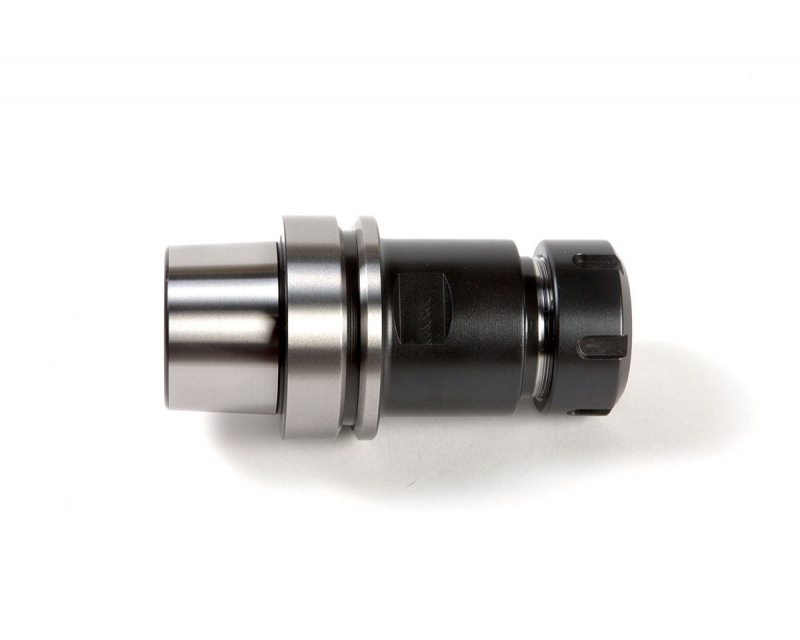

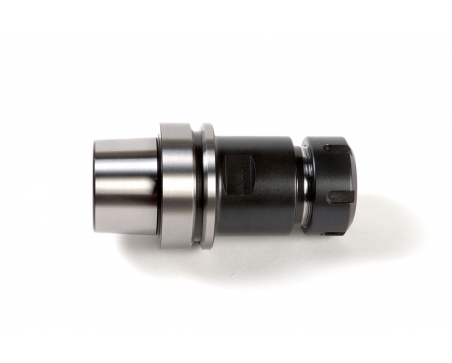

HSK63/E DIN69893 COLLET CHUCK H160 ER25

ER Collet Chuck - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
HSK63/E
Typology
PP - Collet Chucks
DIN ISO
DIN6499
H
160
D
42
Collet Type
ER25
Balancing
G2.5 20000
Weight (Kg)
1.59
