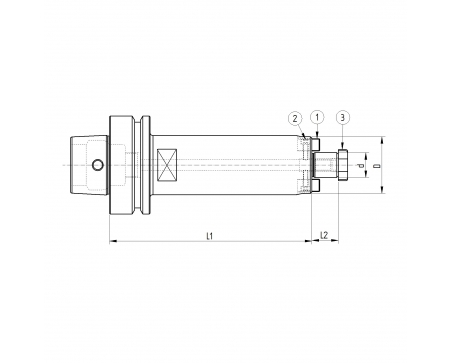

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 932TSL01
  • TASSELLO 14X14X22
  • 2
  • 2
  • 110601601
  • VITE 8.8 TCEI M6X16 BRUN. UNI5931 ISO4762 A0502005
  • 2
  • 3
  • 932VTC02
  • VITE TESTA A CROCE M16x26
  • 1
Direct purchase spare parts +

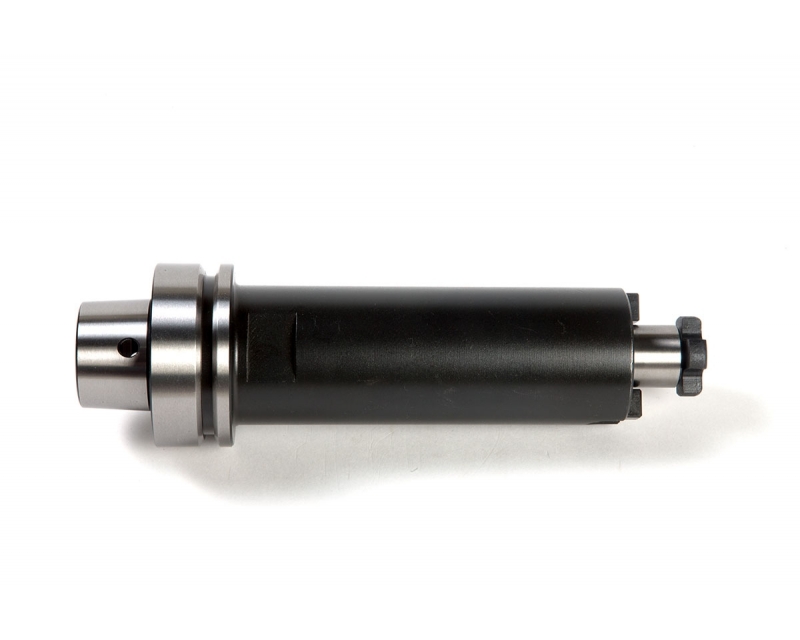

66FPF432

HSK63/F DIN69893 SHELL MILL HOLDER H160 D32

Shell Mill Holders-Tenons Drive - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
HSK63/F
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
66
d
32
L1
160
L2
24
Balancing
G2.5 20000
Weight (Kg)
3.17
