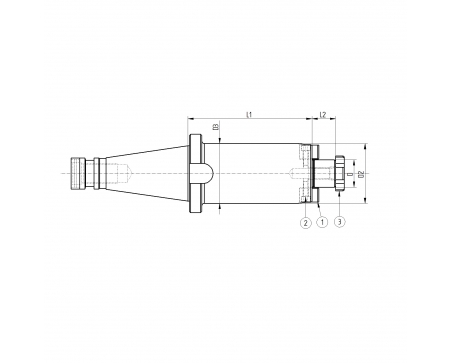

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 916TSL11
  • TASSELLO 8X10,5X13
  • 2
  • 2
  • 110301201
  • VITE 8.8 TCEI M3X12 BRUN. UNI5931 ISO4762
  • 2
  • 3
  • 916VTC02
  • VITE TESTA A CROCE M8x16
  • 1
  • 4
  • 500100001
  • ANELLO O-RING PLASTICA X ISO40 D.i22 D.e25 H7
  • 1
Direct purchase spare parts +

540PF516

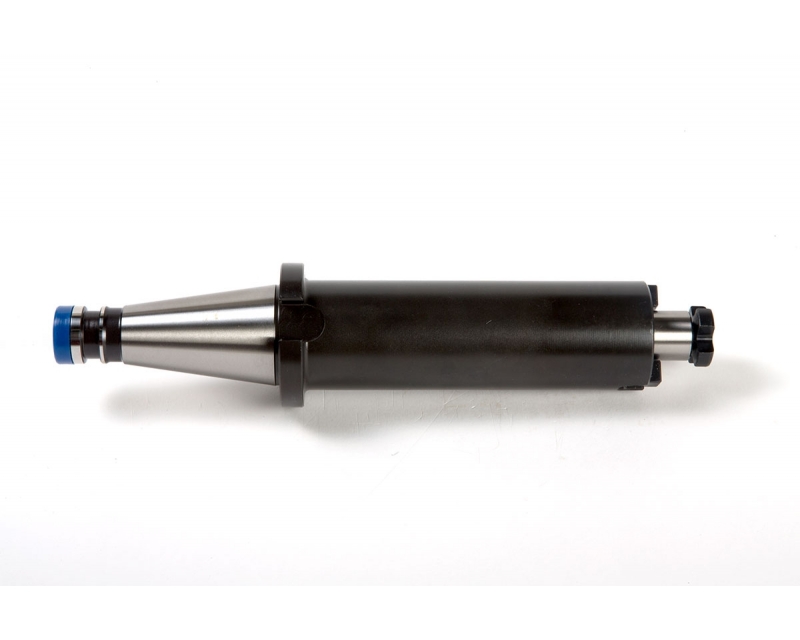

ISO40 DIN2080 SHELL MILL HOLDER H200 D.16

Shell Mill Holders-Tenons Drive - Accessories included

  • PRODUCT DETAILS

Data sheet

Taper
ISO40
Typology
PF - Shell Mill Holders
DIN ISO
ISO3937
D
16
D2
38
D3
38
L1
200
L2
17
Weight (Kg)
2.53
