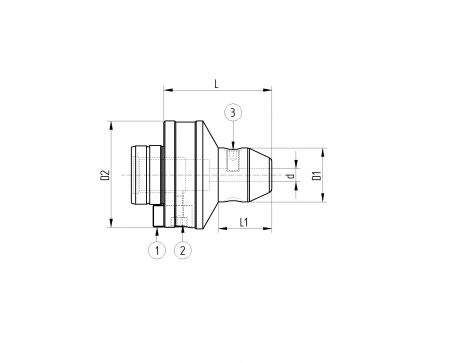

SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 940TSL01
  • TASSELLO 16X16X25
  • 1
  • 2
  • 110601601
  • VITE 8.8 TCEI M6X16 BRUN. UNI5931 ISO4762 A0502005
  • 1
  • 3
  • 101401602
  • GRANO P. COPPA M14X16 BRUNITO DIN916 ISO4029 UNI5929 15929014016B
  • 1
Direct purchase spare parts +

VL8WLD16

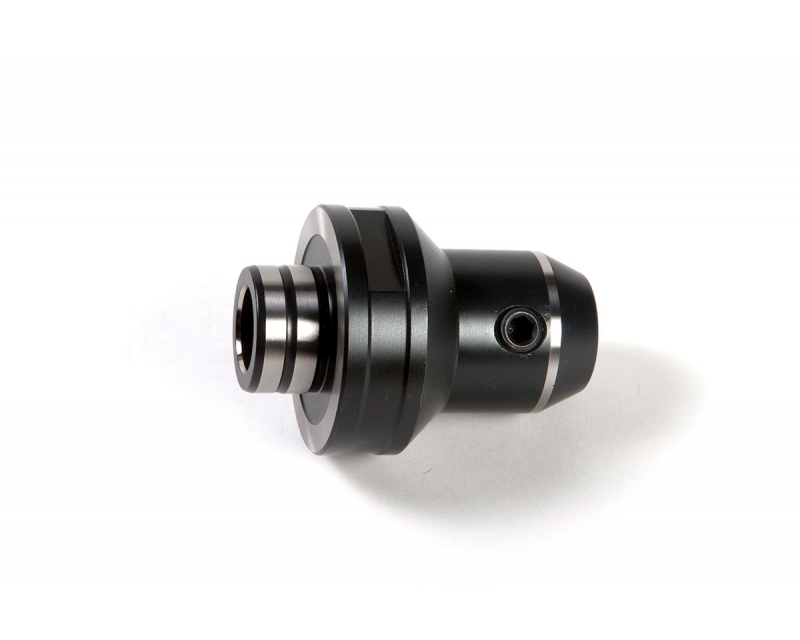

MOD. D80 WELDON TYPE D.16 H-70

Modular Adaptor For Weldon Toolholders - Accessories included

  • PRODUCT DETAILS

Data sheet

Typology
WLD - End Mill Holders Weldon Type (Standard)
D
16
d
16
D1
48
D2
80
L
70
L1
32
Weight (Kg)
1.56
