SUPPLIED COMPONENTS AND ACCESSORIES

Position
Code
Description
Needs
  • 1
  • 927TSL03
  • TASSELLO 12X10X18
  • 1
  • 2
  • 110401201
  • VITE 8.8 TCEI M4X12 BRUN.UNI 5931 ISO 4762
  • 1
  • 3
  • 101802002
  • GRANO M18X2X20 BRUNITO A DISEGNO MATERIALE : AVPB
  • 2
Direct purchase spare parts +

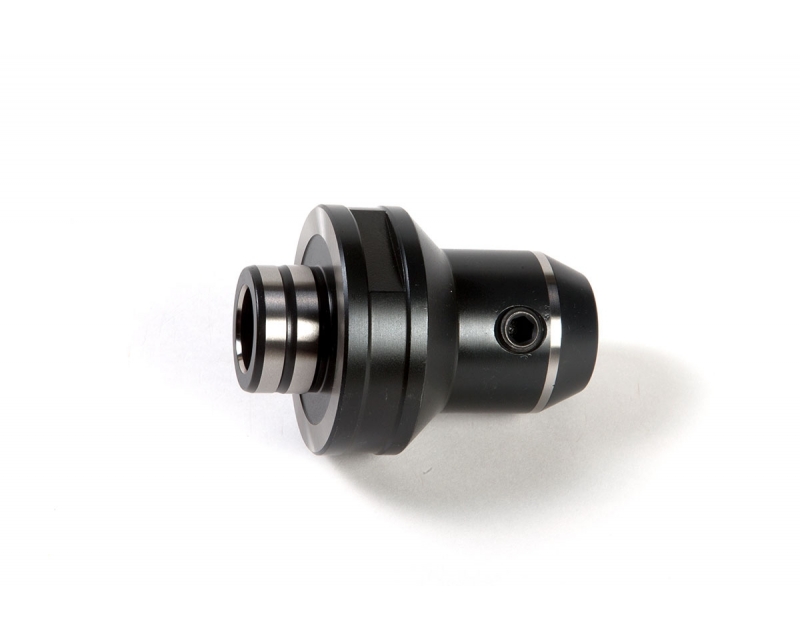

VL5WLD25

MOD. D50 WELDON TYPE D.25 H-80

Modular Adaptor For Weldon Toolholders - Accessories included

  • PRODUCT DETAILS

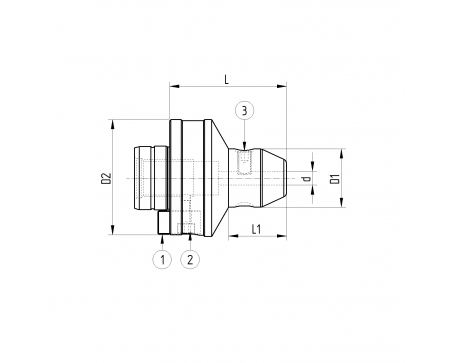

Data sheet

Typology
WLD - End Mill Holders Weldon Type (Standard)
DIN ISO
DIN1835B
D
25
d
25
D1
65
D2
50
L
80
L1
66
Weight (Kg)
1.57
